How to Choose Heavy-Duty Car Ramps for Safe Home Garage Use

I measured the front axle load on my SUV last year and realised the cheap ramps in my garage were rated almost 200 kg below what I actually needed on each side.

That single number changed the way I think about working under a vehicle at home.

In Australia, the safest way to raise one end of a car in a home garage is with portable ramps that comply with the national safety standard and are sized to your Gross Axle Weight Rating, or GAWR. They also need to match your vehicle's approach angle, the steepest incline the front can climb, and its breakover angle, which helps prevent the middle from grounding out.

Urban driveways, basement garages, and the growing weight of EVs make that check more important than it was even a few years ago.

Whether you maintain a low-profile sedan in Melbourne, a dual-cab ute in Brisbane, or manage investment properties in Sydney, ramp selection is both a garage safety fix and a practical accessibility upgrade that helps protect vehicles and adds subtle resale appeal.

Before you buy, verify the standard, size the pair to the axle, confirm the angle, and plan a safe setup on level concrete.

Get the spec right once and every oil change, inspection, or underbody wash becomes a repeatable, lower-risk routine.

Key Takeaways

Safe ramp choice comes down to three checks: legal compliance, axle-based capacity, and a setup that matches your car and garage.

●       Buy to the Australian mandatory standard.Ramps must comply with the Consumer Goods (Portable Ramps for Vehicles) Safety Standard 2017, based on AS 2640:2016, and carry permanent load markings.

●       Size capacity by axle, not total mass.Each ramp's rating must be at least half the relevant GAWR. Guessing from gross vehicle mass alone can leave you dangerously under-specced.

●       Validate geometry before you drive on.Keep the ramp angle below your car's approach angle and check breakover if your driveway crests sharply.

●       Surface and setup are non-negotiable.Use ramps only on flat, hard, level concrete, always in pairs, with wheel chocks on grounded wheels and a spotter guiding you on.

●       Council rules apply to kerb and driveway transitions.Works between the roadway edge and your property boundary typically require approval under local roads legislation.

●       Never rely on ramps alone for under-car work.Add axle stands whenever you crawl beneath the vehicle. Ramps support the wheels, not the chassis.

What Heavy-Duty Car Ramps Are and Why They Matter at Home

Heavy-duty ramps give you stable, wheel-supported lift, but only when the rating, geometry, and build quality match the vehicle.

Heavy-duty car ramps are paired, drive-on inclines with a flat platform at the top, designed to hold one end of a vehicle at a stable height for inspection or service. In Australia, they must meet strict design, performance, and marking rules under the mandatory safety standard.

A ramp is not a jack or an axle stand. A jack lifts one point so you can remove a wheel, while a stand holds that point at height. Ramps let you drive up with the tyres supported, which suits oil changes, exhaust checks, and underbody inspections.

Capacity labels deserve close attention. Australian-compliant ramps state a per-ramp load rating in kilograms. Imported products sometimes advertise a per-pair figure, which can leave you with half the safety margin you thought you had. Always confirm the number applies to one ramp, not the pair.

Look for a wide base, roll-off prevention lips, over-travel stops, non-slip feet, and a surface finish that will not cut or scuff the tyre. Those details are not cosmetic. They are what separate compliant equipment from bargain-bin gear that shifts, tips, or damages the tyre carcass.

Ramps also solve a practical home problem. A well-chosen low-angle pair can reduce front-end scraping, make garage work less awkward, and keep the space cleaner because you are not dragging out a jack and stands for every quick check.

That matters even more with heavier modern vehicles. A medium SUV, a battery-heavy EV, or a ute with accessories on the nose can push far more weight onto the front axle than an older sedan. If the ramp rating is vague, the risk is real.

The Biggest Benefits of Choosing the Right Ramps

The right ramps save time, reduce damage risk, and make routine garage work far more predictable.

Australia's mandatory safety standard for portable vehicle ramps applies to ramps with a nominated capacity up to and including 1,500 kg per ramp. Staying inside that framework gives home users a clear baseline for what safe equipment should provide.

1. Safer Support Than Jack-Only Workflows

Ramps used in pairs create a broad, stable footprint that a single jack point cannot match. Combined with clear capacity markings and permanent warning plates, compliant ramps cut guesswork and reduce the chance of collapse during routine jobs.

They are also faster for repeat work. If you check fluids, inspect the exhaust, or wash road salt and mud from underneath, driving onto a stable pair is usually simpler than lifting one corner at a time.

2. Geometry-Friendly Access for Low Cars

Long, low-angle ramp designs keep the incline below your car's approach angle, which helps prevent bumper scrapes and undertray damage. For low-profile sports cars or very low sedans common in Australian cities, this is essential.

A few extra centimetres of ramp run can be the difference between a clean drive-on and an expensive scrape on the front lip or splash shield.

3. A Practical Upgrade for the Property

Better driveway usability, less cosmetic damage to vehicles, and a tidier garage setup all add daily convenience. For owners and property managers, compliant ramps and smoother transitions also signal a well-kept asset.

No buyer pays a premium because you own ramps, but they do notice a garage that works well and a driveway entry that does not punish low cars every day.

How to Check Whether Your Ramps Are Safe

A safe purchase starts with the label, then moves to load, angle, size, and setup.

Selecting the right ramps is a step-by-step spec process. Work through each stage before you spend a dollar.

Step 1: Confirm Australian Compliance

Start by verifying that the ramp meets the Consumer Goods (Portable Ramps for Vehicles) Safety Standard 2017, based on sections of AS 2640:2016. On the product, look for a permanent warning plate with legible maximum-load markings, surfaces finished to avoid tyre damage, and stability geometry that meets the standard's base-width-to-height ratio.

Permanent matters here. A paper sticker that is peeling off or a generic carton claim is not enough when you are trusting the product with vehicle weight above your chest.

Buying second-hand? Check the ACCC recalls database first. Recent recalls have included car ramps such as low-profile models flagged in July 2023. Inspect the structure, instructions, and markings before you commit.

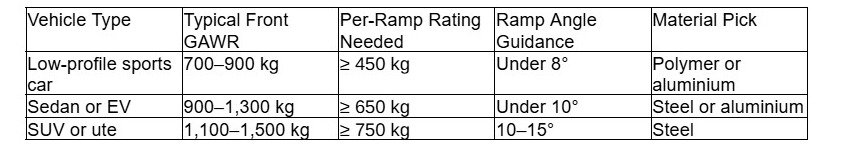

Step 2: Size Capacity by the Axle You'll Lift

If you are lifting the front, use the front GAWR. If you are lifting the rear, use the rear GAWR. Each ramp's rating must be at least half the relevant GAWR.

You will usually find GAWR on the certification and tyre label on the driver-side door jamb, and you can confirm it in the owner's manual. The same label also lists Gross Vehicle Weight Rating, or GVWR, which is the maximum total vehicle weight. Do not size ramps from GVWR alone. It does not tell you how much weight sits on the axle you plan to lift.

A quick example shows why this matters. If your front GAWR is 1,240 kg, each ramp needs a minimum rating of 620 kg. If your SUV carries a bull bar, winch, or extra battery up front, choose a higher rating for margin. A public weighbridge can also confirm how the vehicle actually sits in running trim.

Before you compare any model, write down your front or rear GAWR, convert that axle figure into a per-ramp requirement, note the maximum angle your car can climb without scraping, and confirm your tyre width on the sidewall. If you want a locally sourced option to compare against your specs, Australia-based SafetySector's heavy duty car ramps​ are a practical starting point; browse the models, note the per-ramp load rating, and then size them using the GAWR method described here.

Step 3: Check Geometry, Including Approach and Breakover

Your ramp must be shallower than your car's approach angle, and the full path into the garage must also protect the centre of the vehicle from grounding out.

Approach angle is the maximum incline the front can climb without bodywork interference. Departure angle is the rear equivalent. Breakover angle describes how sharply a vehicle can pass over a crest before the middle touches.

Quick calculations help. Ramp angle equals arctan of rise divided by run. Breakover angle approximates to two times arctan of two times ground clearance divided by wheelbase. You do not need perfect engineering precision for a home check, but you do need honest measurements.

Measure the rise from the floor to the platform and the run from first tyre contact to the start of the platform. A 170 mm rise over a 1,200 mm run gives a ramp angle of about 8 degrees. Use a digital angle finder or a phone inclinometer, then test slowly with a spotter the first time.

Step 4: Pick Materials and Surface Details

Material choice affects handling, storage, and durability, but compliance and rating still come first.

Steel gives maximum strength and long service life, but it is heavier to move and store. Aluminium is lighter and resists corrosion, which helps if you carry the ramps in and out of the garage. Quality polymers are easy to handle and can suit low cars, but they need careful inspection for cracks, heat damage, or UV ageing.

Whichever material you choose, check for textured tread, tyre cradles or side rails, non-slip feet, and clean manufacturing. Avoid products with paint runs, sharp edges, visible cracking, or rough welds.

Step 5: Get Width, Height, and Footprint Right

Size details matter almost as much as the rating.

Ramp width should exceed your tyre's section width by roughly 10 to 20 mm on each side. If the sidewall bulges close to the edge, go wider. Height should give useful working room without forcing a steep climb, and the footprint must sit fully supported on the slab with room to spare.

For tight urban garages, nesting or modular designs can save space without turning the ramps into a storage headache.

Step 6: Inspect the Setup Before Every Use

Safe gear still fails when the setup is sloppy, so treat every drive-on as a short pre-flight check.

ACCC consumer guidance is clear: use ramps on a flat, hard, level surface, always in pairs, anchor them to prevent movement, have a spotter, and chock at least one grounded wheel. SafeWork SA adds that vehicles should be slowly driven onto ramps with guidance from another person, and you should never adjust stand heights under load.

Before each use, check for cracks, deformation, oil contamination, loose debris, or gravel on the contact surface. Set the parking brake, place the chocks, and make sure the spotter knows exactly when to signal stop.

When Not to Use Ramps

Skip ramps if you need wheel-off service at the lifted end, cannot achieve a safe angle on your driveway, or have a vehicle that exceeds consumer ramp capacity. Also skip them on sloped, soft, hot, or broken surfaces. In those cases, use a professional hoist, axle stands with a jack, or fix the driveway approach first.

Where to Use and Store Ramps on Your Property

Ramps are only as safe as the surface under them and the space around them.

Placement determines whether your ramps perform properly or become a liability. Match the location to the task.

Garage Slab

Clean, level concrete is the best surface. Sweep away grit, wipe up oil, and position your spotter one car length ahead and one car width to the side on the driver's side. Confirm the chocks and park brake are set before the driver exits.

Driveway Transitions and Kerb Entries

If low cars scrape at the kerb-to-driveway junction, a compliant transition ramp can smooth the entry. However, NSW councils such as Tweed Shire require approval under Section 138 of the Roads Act 1993 for works between the roadway edge and property boundary, including crossover modifications.

Check with your local council before installing anything on public land, and keep drainage channels clear. A ramp that blocks runoff can create a new problem long before it solves the scraping.

Apartment and Shared Car Parks

Consult strata or building management before bringing personal ramps into shared spaces. Confirm floor load limits, fire-egress rules, and storage rules, and never leave the ramps where another driver could hit them.

Outdoor and Uneven Surfaces

Avoid gravel, loose pavers, grass, or bitumen on hot days. Use only flat, hard, level surfaces. If you must work outdoors, follow the manufacturer's method for preventing movement. Never shim with timber offcuts, bricks, or tiles.

Storage and Transport

Keep ramps dry and out of direct sun when possible. Polymers degrade under long UV exposure, steel needs touch-up where coatings chip, and aluminium should be inspected for dents or damage around joins. Store the pair together with the instruction sheet so the rating and setup steps stay easy to check.

How to Set Up, Test, and Maintain Ramps for Long-Term Safety

A repeatable setup routine matters more than brand names or marketing claims.

Consistent process keeps you safe every time. Use these checklists and refine them for your vehicle.

Pre-Drive-On Checklist

●       Verify that the compliance markings are legible and that the load rating matches your GAWR calculation.

●       Inspect the ramp body for cracks, warping, bent edges, or contamination.

●       Confirm the surface is flat, hard, and level concrete.

●       Align the ramps square to the tyres and agree on hand signals with the spotter.

●       Clear tools, pets, loose mats, and anything else from the work area.

Driving On and Off Protocol

Use low throttle, straight wheels, and steady movement. Keep the driver's window down so the spotter can be heard clearly. If alignment is off, roll back fully, reset, and try again. Never try to steer sharply once the tyre is climbing the ramp face.

When driving off, release the brake smoothly and let the car roll straight down under control. Sudden throttle can shift the ramp or bounce the vehicle forward.

Stabilisation and Redundancy

Set the park brake firmly and chock at least one grounded wheel. If you will work beneath the vehicle, add axle stands at the correct support points and perform a stability shake test before you go under. That second layer takes a minute and can save your life.

Inspection Cadence

Log pre-use checks in a simple notebook or phone note. Conduct a deeper inspection every quarter, looking for hairline cracks, worn tread, loose fasteners, or warped surfaces. Retire any ramp that shows structural damage, has missing markings, or was hit hard enough to raise doubt about its condition.

Clean the ramps after dirty jobs, especially if oil, brake dust, or wet clay has built up on the contact surfaces. A clean ramp is easier to inspect and less likely to let the tyre slip.

How to Make Heavy-Duty Ramps Work for You

When the specs and setup are right, ramps turn awkward garage jobs into controlled, repeatable work.

Australian-compliant ramps sized to your axle loads and matched to your vehicle's geometry can make home servicing safer and easier. Set them on level concrete, use chocks and a spotter, and treat every drive-on as a deliberate process rather than a quick shortcut.

That routine protects bodywork, improves driveway usability for low cars, and reduces the chance that a simple maintenance task turns into vehicle damage or an injury. Start with the GAWR on the door-jamb label, verify the markings, and measure the ramp angle before the first use.

FAQ

Most ramp questions come back to the same rule: match the rating to the axle, use a level concrete surface, and add backup support before you go underneath.

Are Plastic or Polymer Ramps Safe?

Yes, if they comply with the Australian mandatory standard and remain undamaged. Store polymer ramps out of direct UV exposure, check the capacity markings before each use, and retire any ramp that shows cracks or warping.

Can I Put Only the Rear Wheels on Ramps?

Yes. Size each ramp to at least half the rear GAWR and chock the front wheels securely. The same compliance and setup rules apply regardless of which end you lift.

How Steep Is Too Steep?

Keep the ramp angle lower than your vehicle's approach angle. For very low cars, that usually means aiming for an incline under 8 to 10 degrees and testing carefully the first time.

Do I Still Need Jack Stands With Ramps?

Use axle stands any time you work under the vehicle. Ramps support the wheels, not the chassis, and stands give you a second safety layer if the vehicle shifts.

Can I Use Ramps on Pavers or Asphalt?

No. Use only flat, hard, level surfaces, preferably concrete. Pavers can shift under load, and hot asphalt can deform, both of which reduce stability.

Do I Need Council Approval for a Kerb Ramp?

In many cases, yes. Works on the verge or road reserve typically require approval under local roads legislation, so check with your council before modifying any area between the roadway and your property boundary.

My EV Is Heavier, So Do I Need Different Ramps?

Possibly. EVs can carry more weight on the front axle due to battery layout and overall mass. Verify the GAWR for the axle you will lift and choose ramps rated at or above half that figure with sensible margin.

Are There Recalls on Car Ramps in Australia?

Yes. The ACCC has issued ramp-related recalls, including low-profile models flagged in July 2023. Always check the ACCC recalls database before buying second-hand ramps.
